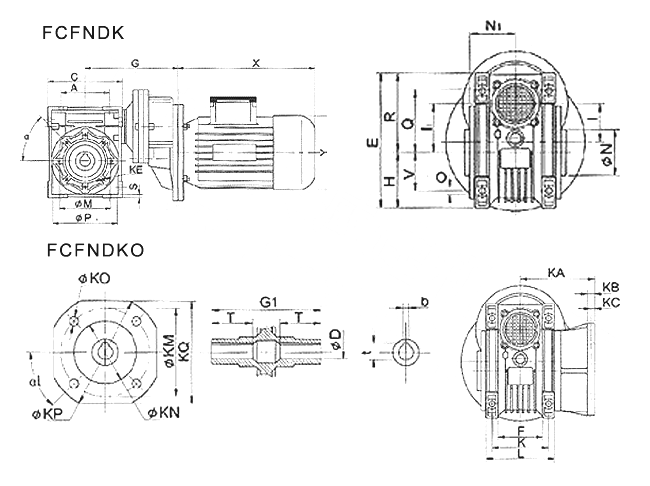

產品介紹
產品名稱：鋁合金殼雙級FCFN系列
產品類別：蝸輪蝸桿減速機系列
產品型號：FCFN
size
A
C
D（H7）
E
F
G
G1
H
I
I1
L
M
N（h8）
N1
O
P
Q
R
S
T
63/40
70
100
18(19)
121.5
43
123
78
50
40
40
71
75
60
36.5
6.5
87
55
71.5
6.5
26
63/50
80
120
25(24)
144
49
133
92
60
50
40
85
85
70
43.5
8.5
100
64
84
7
30
71/50
80
120
25(24)
144
49
143
92
60
50
50
85
85
70
43.5
8.5
100
64
84
7
30
63/63
100
144
25(28)
174
67
148
112
72
63
40
103
95
80
53
8.5
110
80
102
8
36
71/63
100
144
25(28)
174
67
158
112
72
63
50
103
95
80
53
8.5
110
80
102
8
36
71/75
120
172
28(35)
205
72
176
120
86
75
50
112
115
95
57
11
140
93
119
10
40
80/75
120
172
28(35)
205
72
186
120
86
75
63
112
115
95
57
11
140
93
119
10
40
71/90
140
208
35(35)
238
74
193
140
103
90
50
130
130
110
67
13
160
102
135
11
45
80/90
140
208
35(38)
238
74
203
140
103
90
63
130
130
110
67
13
160
102
135
11
45
80(90)/110
170
252.5
42
295
-
233
155
127.5
110
63
144
165
130
74
14
200
125
167.5
14
50
80(90)130
200
292.5
45
335
-
253
170
147.5
130
63
155
215
180
81
16
250
140
187.5
15
60
size
V
K
KA
KB
KC
KE
a
a1
FB
FL
F
FB
FL
63/40
26
35
60
67
76.5
7
9
7
7
M6x8(n.4)
45o
45o
63/50
30
40
70
90
87.5
9
10
9
9
M8x10(n.4)
45o
45o
71/50
30
40
70
90
87.5
9
10
9
9
M8x10(n.4)
45o
45o
63/63
36
50
85
82
99
10
11
10
10
M8x14(n.8)
45o
45o
71/63
36
50
85
82
99
10
11
10
10
M8x14(n.8)
45o
45o
71/75
40
60
90
111
-
13
-
-
-
M8x14(n.8)
45o
45o
80/75
40
60
90
111
-
13
-
-
-
M8x14(n.8)
45o
45o
71/90
45
70
100
111
-
13
-
-
-
M10x18(n.8)
45o
45o
80/90
45
70
100
111
-
13
-
-
-
M10x18(n.8)
45o
45o
80(90)/110
50
85
115
131
-
15
-
-
-
M10x18(n.8)
45o
45o
80(90)130
60
100
120
140
-
15
-
-
-
M12x21(n.8)
45o
45o
size
KM
KN(H8)
KO
KP
KQ
b
t
kg
F
FB
FL
F
FB
FL
F
FB
FL
F
FB
FL
F
FB
FL
63/40
87
115
87
60
95
60
9(n,4)
9.5(n,4)
9(n,4)
110
140
110
95
-
95
6(6)
20.8(21.8)
3.9
63/50
90
130
90
70
110
70
11(n,4)
9.5(n,4)
11(n,4)
125
160
125
110
-
110
8(8)
28.3(27.3)
5.2
71/50
90
130
90
70
110
70
11(n,4)
9.5(n,4)
11(n,4)
125
160
125
110
-
110
8(8)
28.3(27.3)
5.8
63/63
150
165
150
115
130
115
11(n,4)
11(n,4)
11(n,4)
180
200
180
142
-
142
8(8)
28.3(31.3)
7.9
71/63
150
165
150
115
130
115
11(n,4)
11(n,4)
11(n,4)
180
200
180
142
-
142
8(8)
28.3(31.3)
8.5
71/75
165
-
-
130
-
-
14(n,4)
-
-
200
-
-
170
-
-
8(10)
31.3(38.3)
11.3
80/75
165
-
-
130
-
-
14(n,4)
-
-
200
-
-
170
-
-
8(10)
31.3(38.3)
13.1
71/90
175
-
-
152
-
-
14(n,4)
-
-
210
-
-
200
-
-
10(10)
38.3(41.3)
15.3
80/90
175
-
-
152
-
-
14(n,4)
-
-
210
-
-
200
-
-
10(10)
38.3(41.3)
17.2
80(90)/110
230
-
-
170
-
-
14(n,8)
-
-
280
-
-
260
-
-
12
45.3
39
80(90)/130
235
-
-
180
-
-
16(n,8)
-
-
320
-
-
290
-
-
14
48.8
52.
產品名稱：鋁合金殼雙級FCFN系列
產品類別：蝸輪蝸桿減速機系列
產品型號：FCFN
產品類別：蝸輪蝸桿減速機系列
產品型號：FCFN
| size | A | C | D（H7） | E | F | G | G1 | H | I | I1 | L | M | N（h8） | N1 | O | P | Q | R | S | T |
| 63/40 | 70 | 100 | 18(19) | 121.5 | 43 | 123 | 78 | 50 | 40 | 40 | 71 | 75 | 60 | 36.5 | 6.5 | 87 | 55 | 71.5 | 6.5 | 26 |
| 63/50 | 80 | 120 | 25(24) | 144 | 49 | 133 | 92 | 60 | 50 | 40 | 85 | 85 | 70 | 43.5 | 8.5 | 100 | 64 | 84 | 7 | 30 |
| 71/50 | 80 | 120 | 25(24) | 144 | 49 | 143 | 92 | 60 | 50 | 50 | 85 | 85 | 70 | 43.5 | 8.5 | 100 | 64 | 84 | 7 | 30 |
| 63/63 | 100 | 144 | 25(28) | 174 | 67 | 148 | 112 | 72 | 63 | 40 | 103 | 95 | 80 | 53 | 8.5 | 110 | 80 | 102 | 8 | 36 |
| 71/63 | 100 | 144 | 25(28) | 174 | 67 | 158 | 112 | 72 | 63 | 50 | 103 | 95 | 80 | 53 | 8.5 | 110 | 80 | 102 | 8 | 36 |
| 71/75 | 120 | 172 | 28(35) | 205 | 72 | 176 | 120 | 86 | 75 | 50 | 112 | 115 | 95 | 57 | 11 | 140 | 93 | 119 | 10 | 40 |
| 80/75 | 120 | 172 | 28(35) | 205 | 72 | 186 | 120 | 86 | 75 | 63 | 112 | 115 | 95 | 57 | 11 | 140 | 93 | 119 | 10 | 40 |
| 71/90 | 140 | 208 | 35(35) | 238 | 74 | 193 | 140 | 103 | 90 | 50 | 130 | 130 | 110 | 67 | 13 | 160 | 102 | 135 | 11 | 45 |
| 80/90 | 140 | 208 | 35(38) | 238 | 74 | 203 | 140 | 103 | 90 | 63 | 130 | 130 | 110 | 67 | 13 | 160 | 102 | 135 | 11 | 45 |
| 80(90)/110 | 170 | 252.5 | 42 | 295 | - | 233 | 155 | 127.5 | 110 | 63 | 144 | 165 | 130 | 74 | 14 | 200 | 125 | 167.5 | 14 | 50 |
| 80(90)130 | 200 | 292.5 | 45 | 335 | - | 253 | 170 | 147.5 | 130 | 63 | 155 | 215 | 180 | 81 | 16 | 250 | 140 | 187.5 | 15 | 60 |
|
